ABB S Series

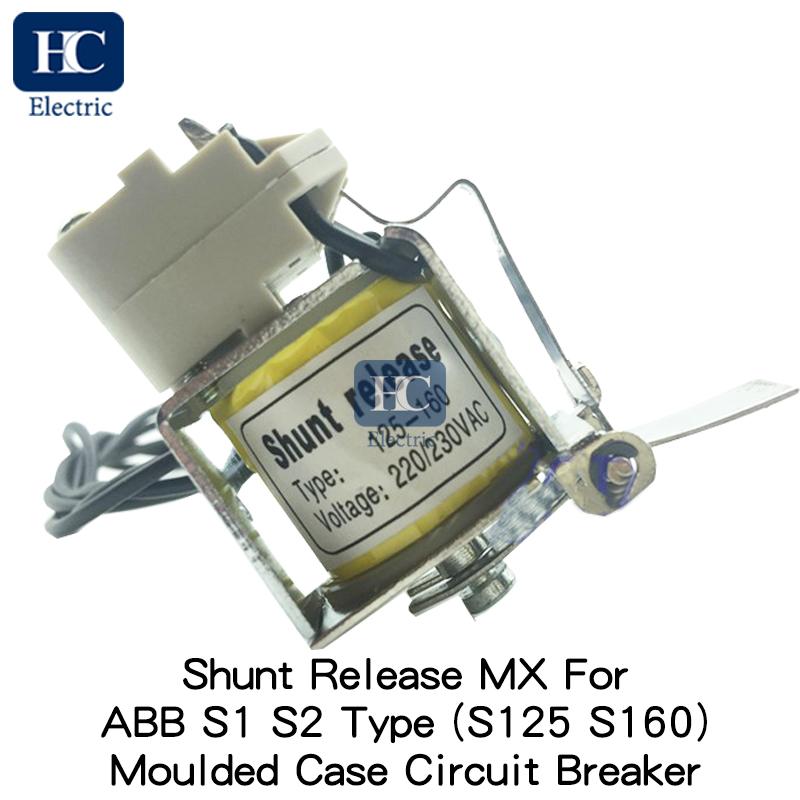

MX shunt trip release, Applicable for ABB S series S1 S2 Moulded Case Circuit Breaker (MCCB), rated current S125 S160 trip voltage 24V DC 220V AC 380V AC

Voltage release type: MX Shunt trip release
Range compatibility: ABB S1 S2 Series (S125 S160)
Control circuit voltage: 24V DC 220V AC 380V AC
Applicable for Brand: ABB
Product description: MX shunt trip release, Applicable for ABB S series S1 S2 Moulded Case Circuit Breaker (MCCB), rated current S125 S160 trip voltage 24V DC 220V AC 380V AC
INQUIRY

device short name	MX
product or component type	Voltage release
device application	Control
Applicable for Brand	ABB
range compatibility	ABB S1 S2 Series (S125 S160)
voltage release type	Shunt trip release
[Uc] control circuit voltage	24V DC 220V AC 380V AC
Complementary
control signal type	Impulse
control signal type	Maintained
impulse duration	>= 20 ms
threshold tripping voltage	0.7...1.1 x Un opening
supply inrush power	10 W
mounting mode	Fixed
response time	50 ms
auxiliary connection terminal	Screw terminal0…1.5 mm²
Contractual warranty
Warranty	18 months
