Rotary Cam Switch

Rotary Cam Switch, Changeover Switch,1-12 Positions, 0°30° 45° 60° 90°, 10A, 20A, 25A, 32A, 63A,125A, 160A and 315A, Rotary Knob Actuator

Conventional free air thermal current: 10A, 20A, 25A, 32A, 63A,125A, 160A and 315A
Front plate dimensions: 30 x 30 mm, 48 x 48 mm, 64 x 64 mm, 88 x 88 mm, 130 x 130 mm
Handle: Colour: Black, Red, Whie, Grey, Yellow Shape: R, I, R2, B, F, L, H, O, P, K
Switching Postion: 0°30° 45° 60° 90°
Product description: Rotary Cam Switch, Changeover Switch,1-12 Positions, 0°30° 45° 60° 90°, 10A, 20A, 25A, 32A, 63A,125A, 160A and 315A, Rotary Knob Actuator
INQUIRY

The LW26 series rotary cam switch mainly applies to below AC 440V,or below 240V DC, rated current up to 315A circuits. It is applied for unfrequent connecting or disconnecting circuits working as controlling or changeover function. It can be also used to control three phase asynchronous motor or as command control or for circuit measuring like Voltmeter or Ammeter. It has wide applications such as circuit controlling, testing equipment, motor controlling, command controlling and electric welding controlling.

HC electric rotary cam switch complies to China standard GB 14048.5 and International standard IEC 60947-3, IEC 60947-5-1.

Typical switch applications include: Ammeter switch, Changeover switch, OFF-ON switch,ON-OFF switch, Reversing star-delta switch, Reversing switch, Star-delta switch, Start selector switch, Stepping switch, Switch, Voltmeter switch, 2-speed motor pole change switch.

LW26 series rotary cam switch has complete model types including 10A, 20A, 25A, 32A, 63A,125A, 160A and 315A, etc.

LW26 is an ideal innovative type product that can substitute most domestic products and some other foreign types including LW2, LW5, LW6, LW8, LW12, LW15, HZ5, HZ10, HZ12, etc.

Derived from LW26 rotary cam switch, there are Padlock type LW26GS (160A and below) and Key Lock type LW26S( 63A and below) which can be used as critical cutoff switches for important equipment to prevent misoperation or operation from unauthorized staff.

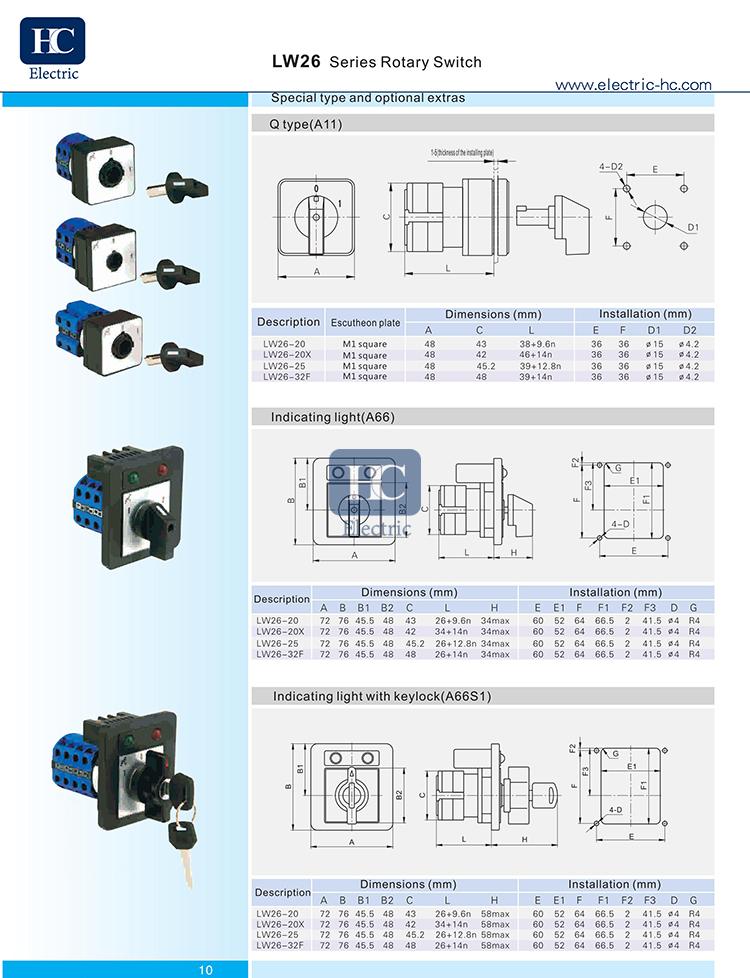

Within LW26 series, types from 20A to 160A can also be equipped with plastic protection enclosure.

HC Electric Rotary Cam Switches can offer a complete range of cam switches for control, instrumentation and motor stating applications, maximizing the benefits and optimizing your use of assets. The standard cam switches provide you with a variety of functionalities for the most common mounting types and application with minimum footprint area. For example ON-OFF switches, Change-over switches, Multi-step switches, Volt-ammeter switches, Ammeter switches, Voltmeter switches, Bypass switches, Closed transition switches, UPS switches, Reversing switches, Pump-start switches, Stop-start switches, Ventilation switches, Binarycode switches.

Main
range of product	LW26 Rotary cam switch
product or component type	Complete Rotary cam switch Changeover Switch
component name	LW26
[Ith] conventional free air thermal current	10A, 20A, 25A, 32A, 63A,125A, 160A and 315A
product mounting	Front mounting
fixing mode	Ø 8 Ø8.5 Ø10 Ø13 or Ø16 hole
cam switch head type	With front plate 30 x 30 mm, 48 x 48 mm, 64 x 64 mm, 88 x 88 mm, 130 x 130 mm
type of operator	Colour: Black, Red, Whie, Grey, Yellow Shape: R, I, R2, B, F, L, H, O, P, K (Please refer to catalogue)
rotary handle padlocking	Without
presentation of legend	With metallic legend, 1 - 0 - 2 black marking, ON-OFF, 0-1-2-3, 1-2-3-4, etc. Please check our catalogue for selection, and contact us before ordering
cam switch function	Changeover switch
return	With/Without
off position	With Off position
poles description	1P-12P
switching positions	Left: 30° 45° 60° 90°, etc.
switching positions	Right: 30° 45° 60° 90°, etc.
IP degree of protection	IP20 (contact block)
IP degree of protection	IP65 (operating head) conforming to IEC 60529
Complementary
[Ui] rated insulation voltage	440 V, degree of pollution: 3 conforming to IEC 60947-1
rated operational power in W	370 W AC-23A, 110/120 V 1 phase
rated operational power in W	750 W AC-23A, 220/240 V 1 phase
rated power in hp	0.33 hp at 110/120 V AC, 1 phase
rated power in hp	0.75 hp at 220/240 V AC, 1 phase
[Ie] rated operational current AC	10 A at 400 V AC-1
	10 A at 400 V AC-21A
	3 A at 240 V AC-15
	6 A at 120 V AC-15
[Ie] rated operational current DC	10 A at 24 V resistive load
	0.3 A at 220 V resistive load
	0.7 A at 110 V resistive load
electrical durability	100000000 cycles
short-circuit protection	10 A by cartridge fuse, type gG
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
contact operation	Slow-break
electrical connection	Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm² to 2 x 50 mm²
mechanical durability	1000000 cycles
product weight	0.035 kg
Environment
standards	CENELEC EN 50013
	EN/IEC 60947-3
	EN/IEC 60947-5-1
product certifications	CE and GB 14048.5 certificate
protective treatment	TC
ambient air temperature for operation	-20...55 °C
ambient air temperature for storage	-40...70 °C
electrical shock protection class	Class II conforming to IEC 60536
Contractual warranty
Warranty period	18 months
