Solar Isolator Switch

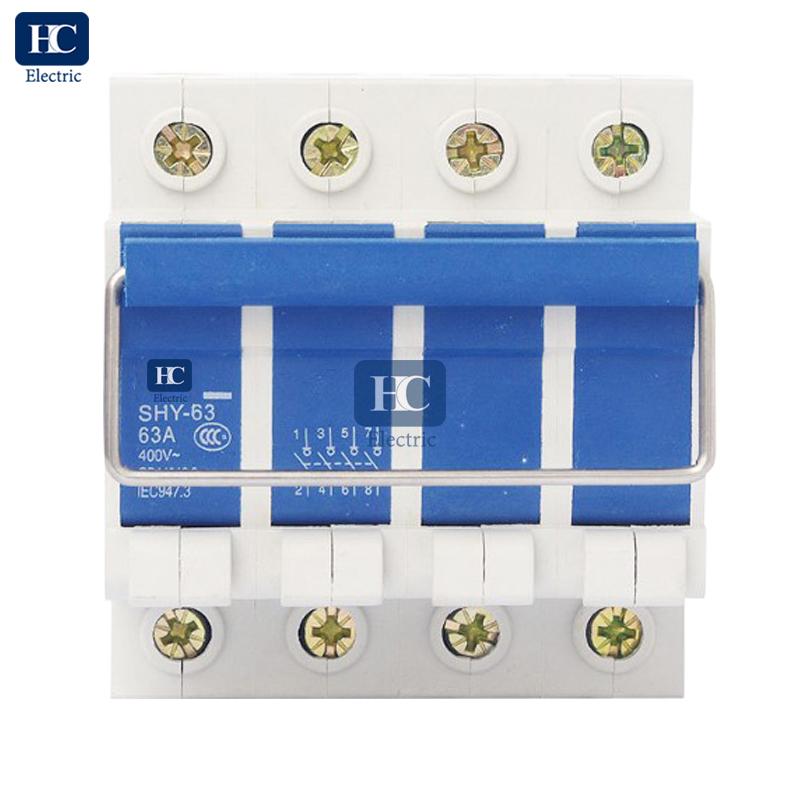

Solar AC Isolator Switch Hand Pull

Rated Current: 6A 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A
Poles: 1P 2P 3P 4P
Product Name: Solar AC Isolator Switch
Operation Mode: Manual Hand Pull
Product description: Solar AC Isolator Switch Hand Pull
INQUIRY

AC isolator switches

AC isolator switches are used for disconnecting the inverter from the grid for maintenance, repair or installation. Below is an example of an AC isolator used in most PV applications.

For example, in some regions, the standard states: if the distribution board of a building is within 3 meters of the solar inverter installed, an AC isolator can be eliminated. Instead, a circuit breaker in the distribution board can be used to act as an AC isolator. If the distribution board is more than 3m away from the distribution board, AC isolator switches are required to be installed.

AC isolator switch for use with a grid-connected solar array. Positioned adjacent to the inverter a AC switch is required to provide a means of manually isolating the AC supply during system installation or any subsequent maintenance.
