Programmable Digital Time Switches

  • Weekly digital time switch THC-30A 1 Channel
  • Weekly digital time switch THC-30A 1 Channel
  • Weekly digital time switch THC-30A 1 Channel
Weekly digital time switch THC-30A 1 ChannelWeekly digital time switch THC-30A 1 ChannelWeekly digital time switch THC-30A 1 Channel

Weekly digital time switch THC-30A 1 Channel

  • Item No: THC-30A
  • Times of Setting ON and OFF: 16ON+16OFF
  • Time Setting Range: 1 Minute to 168 Hours
  • Dimension: 81*36*66mm
  • Product description: Weekly digital time switch THC-30A 1 Channel
  • INQUIRY

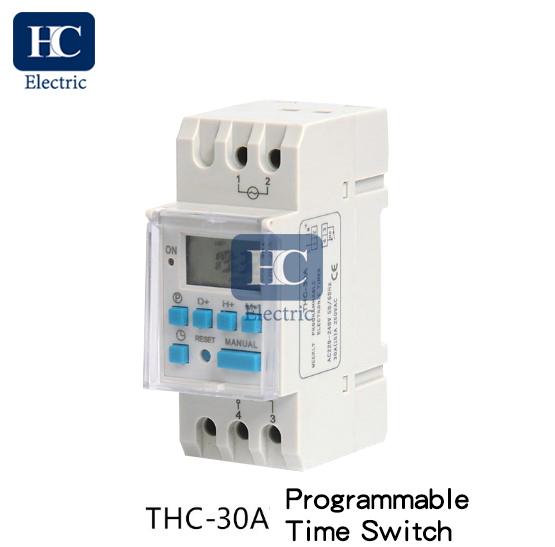

Weekly digital time switch 1 Channel THC-30A

ItemNo THC-30A
Operating Voltage  AC 220-240V 50Hz/60Hz (Other special voltages can be customized)
Power Consumption  4.5VA
Operating Temperature -10~+50
Accuracy ≤1s/d (25)
Times of Setting ON and OFF  16ON+16OFF
Minimum Setting Range 1 Minute
Time Setting Range  1 Minute to 168 Hours
Contact Capacity Resistive: 30A/250VAC (cosΦ=1)
Storage Battery 3 Years
Dimension  81*36*66mm
Weight 125g
QTY/Carton 100PCS
Gross Weight 18KG
Net Weight 17KG
Carton size (mm) 390*220*375
Mounting DIN rail mounting
