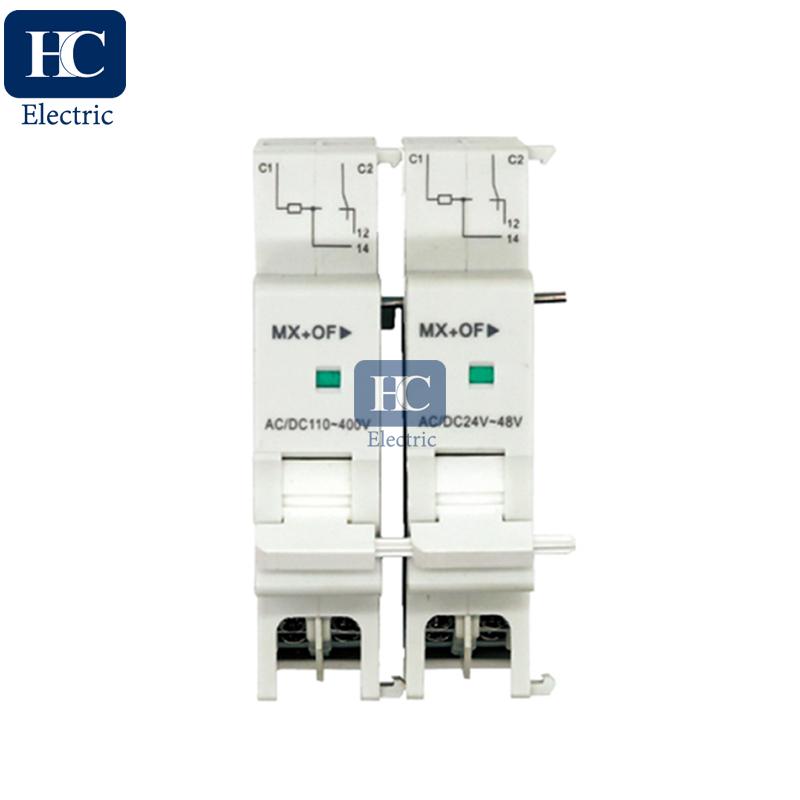

  • MX+OF Shunt Trip Release and Auxiliary Contact
  • Model Type: Schneider EA9 MCB Minature Circuit Breaker
  • Voltage: DC24V or AC220V
  • Standard:EN/IEC 60947-5-1
  • Product description: 24V 220V MX+OF Shunt trip release with Auxiliary Switch for Schneider EA9 Miniature Circuit Breakers MCB accessories
  • INQUIRY

24V 220V MX+OF Shunt trip release with Auxiliary Switch for Schneider EA9 Miniature Circuit Breakers MCB accessories

OF Auxiliary Contact
SD Alarm Contact
MX+OF Shunt Trip Release+Auxiliary Contact
MX Shunt Trip Release
MV+MN Over-Voltage/ Under-Voltage Release
MN Under-Voltage Release
Product or component type Shunt Trip release with Auxiliary contact
Device Short Name MX+OF
Signal contacts composition 1 Normal Open and 1 Normal Close
[Ie] rated operational current 3A at 415V AC
6a at <=240V AC
[Uc] control circuit Voltage 100...415 V AC 50/60 Hz
110...130 V DC
9mm pitches 2
Product compatibility

Schneider EA9

Complementary
Range compatibility
Mounting mode Fixed
Mounting support 35mm symmetrical DIN rail
Height 82.5mm
Width 18mm
Depth 73.5mm
Product Weight 65g
Colour White
Connections-Terminals Screw clamp terminal bottom 2 cables 1.5mm2 flexible
Wire stripping length 9 mm bottom
Tightening torque 1 N.m bottom
Environment
Standards EN/IEC 60947-5-1
Relavtive Humidity 95% at 55℃
Ambient air temperature for operation -25...50℃
Ambient air temperature for storage -40...85℃
Contractual Warranty
Warranty period 18 months

MX+OF Shunt Trip Release Type Selection

MX:Only Shunt Trip Release Function, no Auxiliary Feedback.

MX+OF Active: Shunt Trip Release+Auxiliary,the auxiliary feedback has power,the feedback voltage has the same voltage with the Trip Voltage

MX+OF Passive: Shunt Trip Release+Auxiliary,the auxiliary feedback has no power,the feedback is a pair of common Normal Open Point and Normal Close Point

OF:Auxiliary,can provdie “Tripping†“Switching onâ€States information of MCB

SD: Alarming when MCB is tripped
