Programmable Digital Time Switches

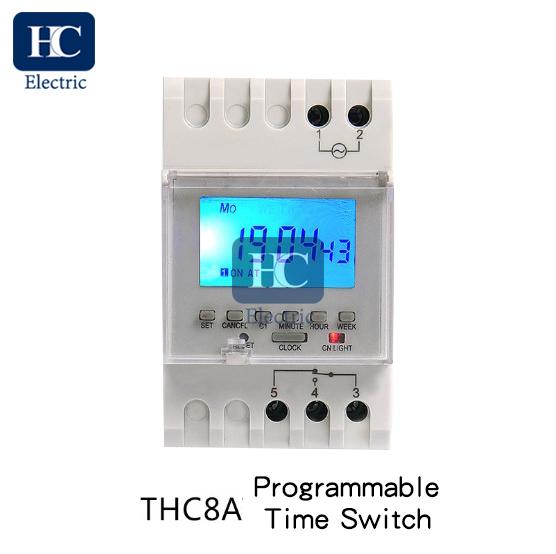

Digital time switch THC8A-1C 16A, THC8A-1C 20A, THC8A-1C 25A, THC8A-1A 30A

Digital time switch THC8A-1C 16A, THC8A-1C 20A, THC8A-1C 25A, THC8A-1A 30A
Times of Setting ON and OFF: 16ON+16OFF
Minimum Time Setting Range: 1 Miniute
Dimension: 87*54*63mm
Product description: Digital time switch THC8A-1C 16A, THC8A-1C 20A, THC8A-1C 25A, THC8A-1A 30A
INQUIRY

ItemNo	THC8A-1C 16A, THC8A-1C 20A, THC8A-1C 25A, THC8A-1A 30A
Operating Voltage	AC 220-240V 50Hz/60Hz
Voltage Range	AC 180-250V
Timing Error	≤1 Second per day
Times of Setting ON and OFF	16ON+16OFF
Power Consumption	4VA (Max)
Display Device	LCD
Electrical Life	100000 (rated Load)
Minimum Setting Range	1 Minute
Contact	1NO+1NC/1NC
Control Current	16A, 20A, 25A, 30A
Mounting	DIN rail mounting
Contact Capacity	THC8A-1C 16A Resistive: 16A/250VAC (cosΦ=1) THC8A-1C 20A Resistive: 20A/250VAC (cosΦ=1) THC8A-1C 25A Resistive: 25A/250VAC (cosΦ=1) THC8A-1A 30A Resistive: 30A/250VAC (cosΦ=1)
QTY/Carton	100PCS
Gross Weight	17.5KG
Net Weight	17KG
Carton size (mm)	460320290mm
Temperature	-10-40℃
Relative Humidity	35-85%RH
