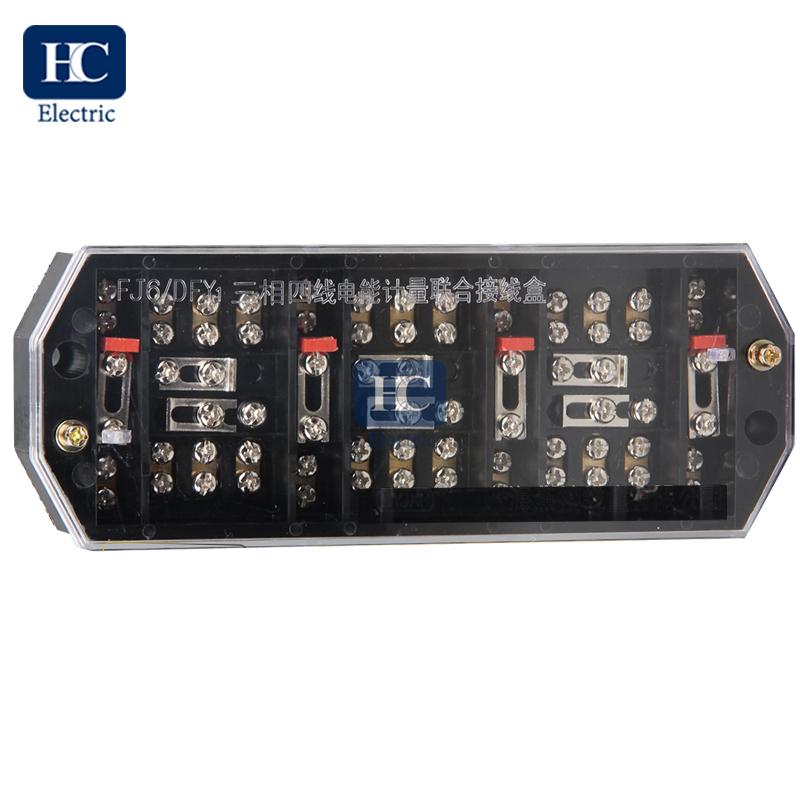

Energy Measuring Terminal Block for Energy Meter FJ6/DFY1 DFY2

1.General Introduction

FJ6/DFY1,2 type energy measuring terminal blocks are special terminal blocks applied for standard wiring in energy measuring equipment. They are also suitable for secondary circuit of rated voltage up to 660V and rated current up to 20A. They are used to change of inspect the electric equipments such as energy meter, electric instrument and relaying equipment under on-load circumstance. They can guarantee operation safety and improve working efficiency.

In order to satisfy customers’ demand, our company improves the design and adopts America-imported high-molecular polycarbonate material. It has advantages of high impact resistance, ageing resistance, anti water-absorption, flame retardant, high temperature resistance. It not only has bright end elegant appearance, but also excellent product performance. It solves former products problems such as fragile, easy mildew stain grow, or heavy CT secondary leakage, easy PT secondary breakdown, etc. This kind of terminal block is an ideal successor of the older generation.

The technical parameter of this products is in conformity with international standards. Feedback from users shows that new type of this terminal block is capable of preventing missing electric energy ,measurement. It is helpful for energy measuring work, and can put an end to energy measuring accident effectively.

2.Main technical parameter

1.Rated insulation voltage:660V, 50Hz/60Hz

2.Rated current: 5A(20A)

3.Power frequency withstanding voltage: 3000V/min

4.Insulation resistance:>30MΩ

5.Ambient temperature: -40℃-+60℃
