Electrical Auxiliaries for Miniature Circuit Breaker (MCB)

  • CHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessories
  • CHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessories
  • CHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessories
CHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessoriesCHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessoriesCHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessories

CHNT NXB Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Miniature Circuit Breakers MCB accessories

  • Over Voltage Under Voltage trip release Voltage Loss Protection MV+MN MNs trip release
  • Model Type: CHNT NXB MCB Minature Circuit Breaker
  • MV+MN: Over and Under Voltage Trip Release (Uoe=270V Uoe=170V)
  • Standard:EN/IEC 60947-5-1

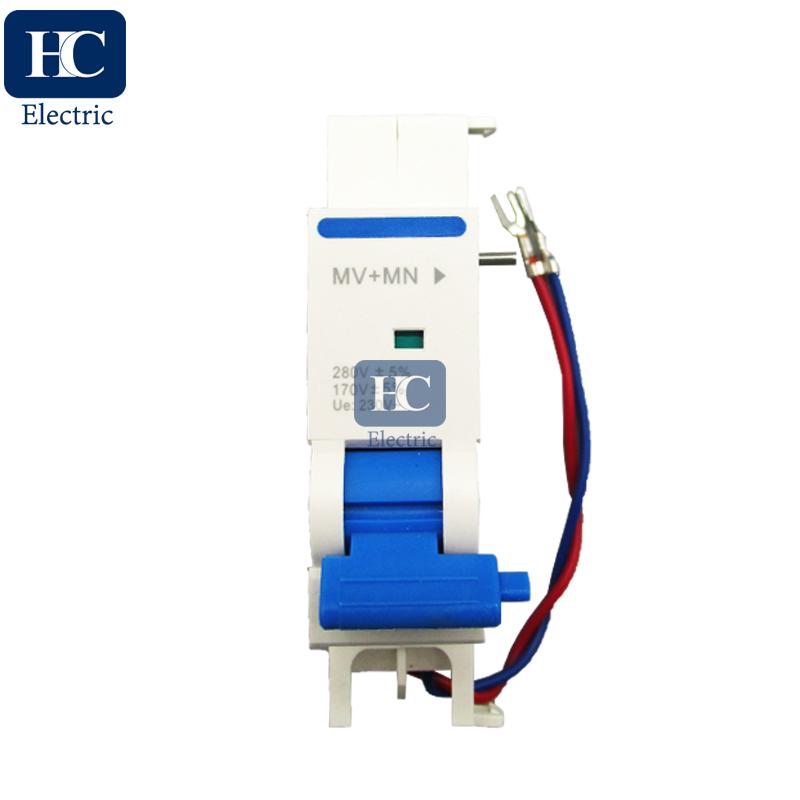

  • Product description: Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for CHNT NXB Miniature Circuit Breakers MCB accessories
  • INQUIRY

Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for CHNT NXB Miniature Circuit Breakers MCB accessories

OF Auxiliary Contact
SD Alarm Contact
MX+OF Shunt Trip Release+Auxiliary Contact
MX Shunt Trip Release
MV+MN Over-Voltage/ Under-Voltage Release
MN Under-Voltage Release
Product or component type

Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for CHNT NXB Miniature Circuit Breakers MCB accessories

Device Short Name MV+MN MNs
Signal contacts composition

N/A

[Ie] rated operational current 3A at 415V AC
6a at <=240V AC
[Uc] control circuit Voltage 100...415 V AC 50/60 Hz
110...130 V DC
9mm pitches 2
Product compatibility CHNT NXB
Complementary
Range compatibility
Mounting mode Fixed
Mounting support 35mm symmetrical DIN rail
Height 82.5mm
Width 18mm
Depth 73.5mm
Product Weight 65g
Colour White
Connections-Terminals Screw clamp terminal bottom 2 cables 1.5mm2 flexible
Wire stripping length 9 mm bottom
Tightening torque 1 N.m bottom
Environment
Standards EN/IEC 60947-5-1
Relavtive Humidity 95% at 55℃

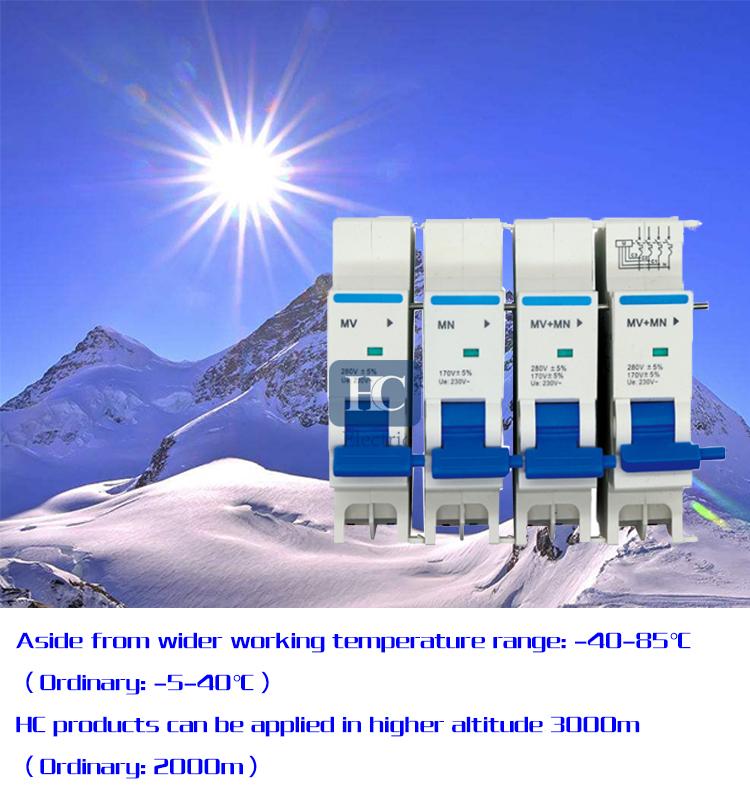

Ambient air temperature for operation -25...50℃
Ambient air temperature for storage -40...85℃
Contractual Warranty
Warranty period 18 months

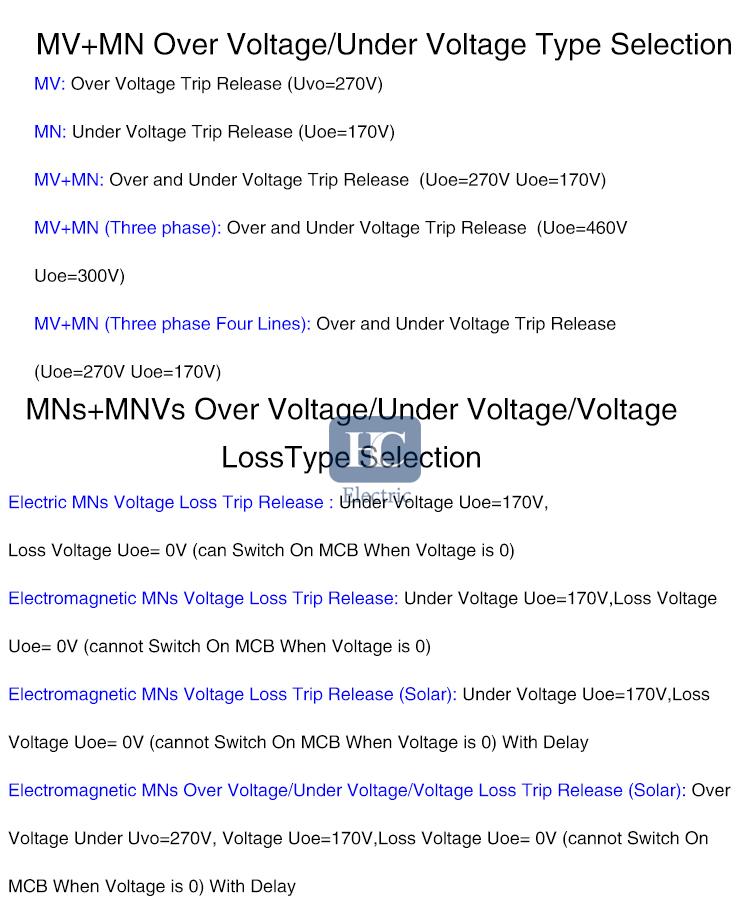

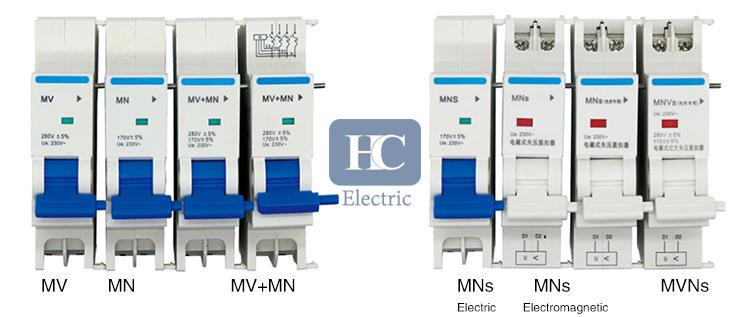

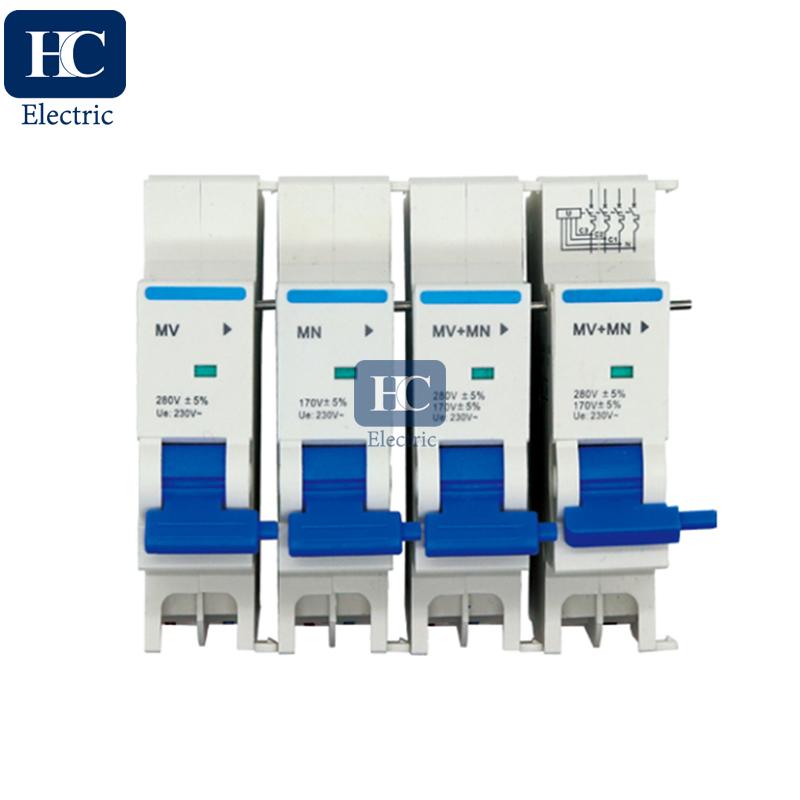

Over Voltage  Under Voltage trip release Type Selection

MV: Over Voltage Trip Release (Uvo=270V)

MN: Under Voltage Trip Release (Uoe=170V)

MV+MN: Over and Under Voltage Trip Release  (Uoe=270V Uoe=170V)

MV+MN (Three phase): Over and Under Voltage Trip Release  (Uoe=460V Uoe=300V)

MV+MN (Three phase Four Lines): Over and Under Voltage Trip Release(Uoe=270V Uoe=170V)

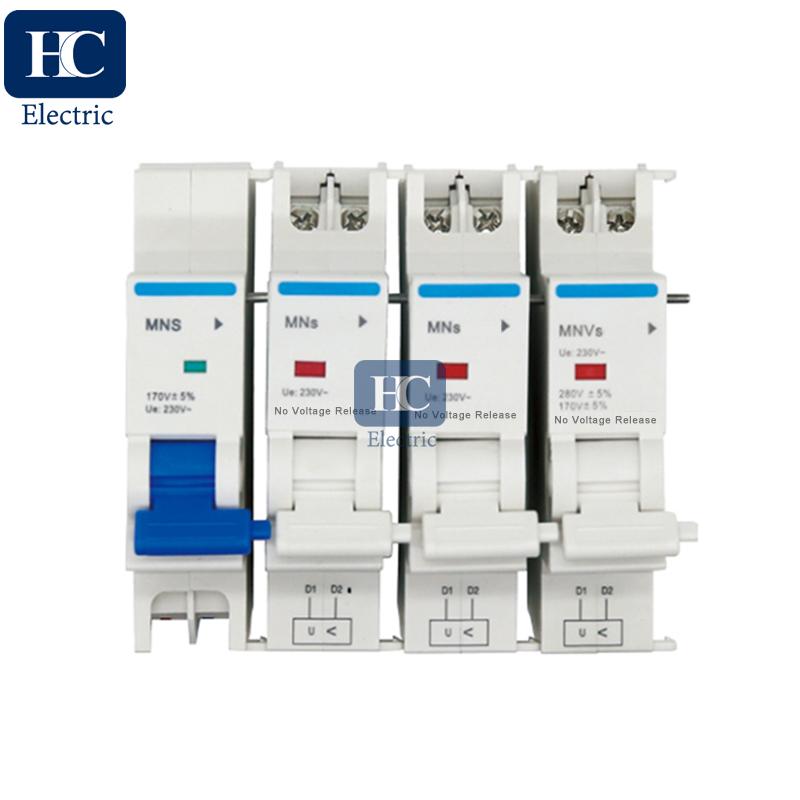

Electric MNs Voltage Loss Trip Release : Under Voltage Uoe=170V,Loss Voltage Uoe= 0V (can Switch On MCB When Voltage is 0)

Electromagnetic MNs Voltage Loss Trip Release: Under Voltage Uoe=170V,Loss Voltage Uoe= 0V (cannot Switch On MCB When Voltage is 0)

Electromagnetic MNs Voltage Loss Trip Release (Solar): Under Voltage Uoe=170V,Loss Voltage Uoe= 0V (cannot Switch On MCB When Voltage is 0) With Delay

Electromagnetic MNs Over Voltage/Under Voltage/Voltage Loss Trip Release (Solar): Over Voltage Under Uvo=270V, Voltage Uoe=170V,Loss Voltage Uoe= 0V (cannot Switch On MCB When Voltage is 0) With Delay
