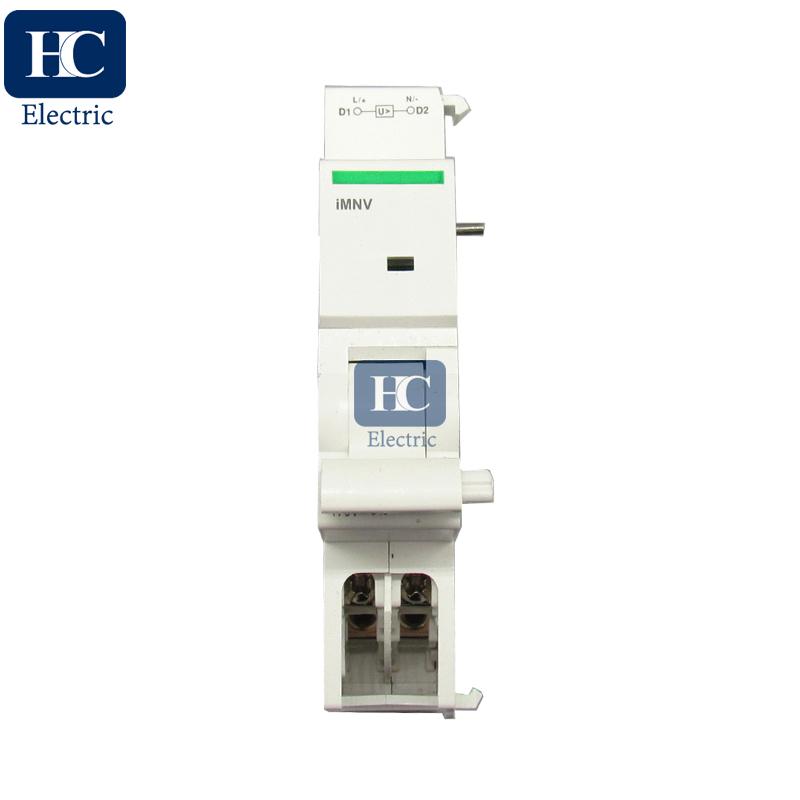

Over Voltage Under Voltage trip release Voltage Loss Protection MV+MN MNs trip release
Model Type: Schneider iC65 MCB Minature Circuit Breaker
MV+MN: Over and Under Voltage Trip Release (Uoe=270V Uoe=170V)
Standard:EN/IEC 60947-5-1
Product description: Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Schneider iC65 Miniature Circuit Breakers MCB accessories
INQUIRY

Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Schneider iC65 Miniature Circuit Breakers MCB accessories

OF	Auxiliary Contact
SD	Alarm Contact
MX+OF	Shunt Trip Release+Auxiliary Contact
MX	Shunt Trip Release
MV+MN	Over-Voltage/ Under-Voltage Release
MN	Under-Voltage Release

Product or component type	Over Voltage Under Voltage trip release Voltage loss protection MV+MN MNs trip release for Schneider iC65 Miniature Circuit Breakers MCB accessories
Device Short Name	MV+MN MNs
Signal contacts composition	N/A
[Ie] rated operational current	3A at 415V AC
	6a at <=240V AC
[Uc] control circuit Voltage	100...415 V AC 50/60 Hz
	110...130 V DC
9mm pitches	2
Product compatibility	Schneider iC65

Complementary
Range compatibility
Mounting mode	Fixed
Mounting support	35mm symmetrical DIN rail
Height	82.5mm
Width	18mm
Depth	73.5mm
Product Weight	65g
Colour	White
Connections-Terminals	Screw clamp terminal bottom 2 cables 1.5mm2 flexible
Wire stripping length	9 mm bottom
Tightening torque	1 N.m bottom

Environment
Standards	EN/IEC 60947-5-1
Relavtive Humidity	95% at 55℃
Ambient air temperature for operation	-25...50℃
Ambient air temperature for storage	-40...85℃

Contractual Warranty
Warranty period	18 months

Over Voltage Under Voltage trip release Type Selection

MV: Over Voltage Trip Release (Uvo=270V)

MN: Under Voltage Trip Release (Uoe=170V)

MV+MN: Over and Under Voltage Trip Release (Uoe=270V Uoe=170V)

MV+MN (Three phase): Over and Under Voltage Trip Release (Uoe=460V Uoe=300V)

MV+MN (Three phase Four Lines): Over and Under Voltage Trip Release(Uoe=270V Uoe=170V)

Electric MNs Voltage Loss Trip Release : Under Voltage Uoe=170V,Loss Voltage Uoe= 0V (can Switch On MCB When Voltage is 0)

Electromagnetic MNs Voltage Loss Trip Release: Under Voltage Uoe=170V,Loss Voltage Uoe= 0V (cannot Switch On MCB When Voltage is 0)

Electromagnetic MNs Voltage Loss Trip Release (Solar): Under Voltage Uoe=170V,Loss Voltage Uoe= 0V (cannot Switch On MCB When Voltage is 0) With Delay

Electromagnetic MNs Over Voltage/Under Voltage/Voltage Loss Trip Release (Solar): Over Voltage Under Uvo=270V, Voltage Uoe=170V,Loss Voltage Uoe= 0V (cannot Switch On MCB When Voltage is 0) With Delay
