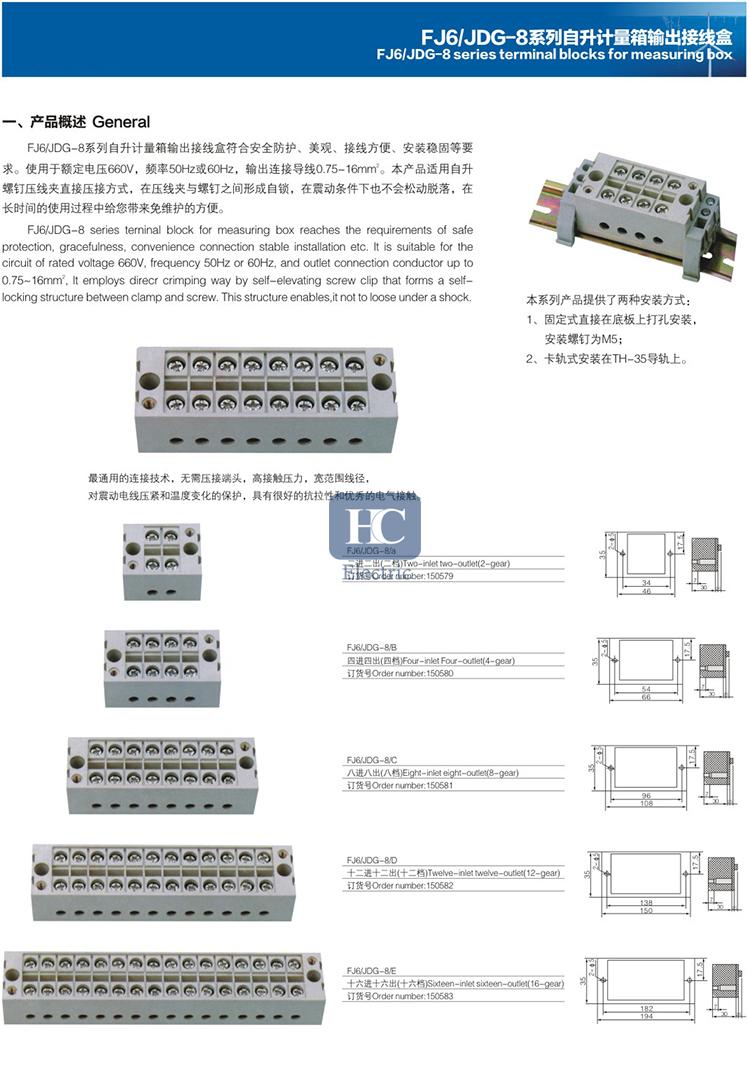

Electric Energy Metering Terminal Block and Junction Box

FJ6/JHD-6 JHD-8 JDG-8 JDG-6 Terminal Block for Energy Measuring Meter Box

FJ6/JHD-6 JHD-8 JDG-8 JDG-6 Terminal Block for Energy Measuring Meter Box

FJ6/JHD-6 JHD-8 JDG-8 JDG-6 Terminal Block for Energy Measuring Meter Box
Insulation voltage:690V 50HZ(60HZ)
Rated Voltage 380V
Inlet: 2.5-50 (70) mm2 Outlet:0.75-16 mm2
Product description: FJ6/JHD-6 JHD-8 JDG-8 JDG-6 Terminal Block for Energy Measuring Meter Box
INQUIRY

FJ6/JHD-6 JHD-8 JDG-8 JDG-6 Terminal Block for Energy Measuring Meter Box reaches the requirements of safe protection, convenient connection, stable installation. It is suitable for the circuit of rated voltage 660V, frequency 50Hz or 60Hz, and connection conductor at inlet terminal up to 2.5-50 (70) mm2 max and outlet terminal up to 0.75-16 mm2. It employs direct crimping way by self-elevating screw clop that forms a self locking structure between clamp and screw. This structure enables it not to loose under a shock.
